Primena:
- Specijalno dizajnirano za profesionlano i industrijsko čišćenje pod visokim pritiskom
- Efikasno za mašine, vozila, podove, javne površine, fasade, itd.
- Antibakterijski sloj daje prednost pri korišćenju u prehrambenoj industriji i javnim kupatilima

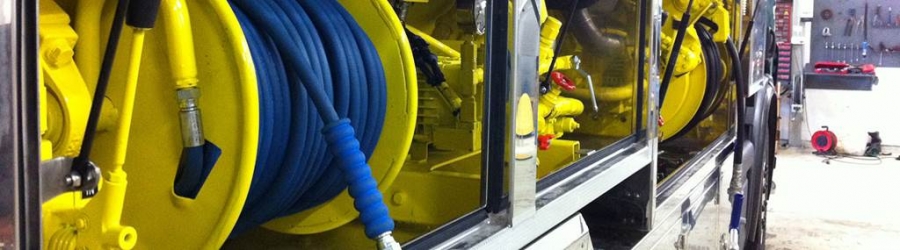

- Pogodno za mobilne mašine za čišćenje, fiksne mašine i sve aplikacije sa vitlom
Prednosti:
- Glatka završna obrada
- Otporno na ulje, deterdžente, habanje i vremenske uslove
- Otporno na visloke temperature
- Antibakterijsko
- Lagano, fleksibilno i otporno na prelom
- Dug životni vek
Inner tube
NBR/SBR, black, smooth
Reinforcement
steel, two braids
Cover
SBR/NBR, blue, smooth
Temperature range
-40°C to +150°C.
Couplings/Fittings
Specially designed fittings are available, please contact us for further information in order to get optimum connections.
Complementary information
50% of the volume in each delivery will be random lengths, shortest length of 10m, at least 50% will be in fixed length mentioned in the table.
Technical Specifications
| ID (mm) | Wall thickness (mm) | OD (mm) | Reinf. diameter (mm) | Working pressure (bar) | Bursting pressure (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number | Stock or min. order (m) |
|---|---|---|---|---|---|---|---|---|---|---|
|
7,9 +0.6/-0.2 |
3.55 |
15 ±0.7 |
12.7 ±0.3 |
650.0 |
1600 |
65 |
0.31 |
100 |
2910310 |
• |
|
9,5 +0.6/-0.2 |
3.8 |
17,4 ±0.7 |
14.9 ±0.3 |
650.0 |
1600 |
70 |
0.38 |
100 |
2910370 |
• |
|
12,7 +0.8/-0.4 |
3.75 |
20,6 ±0.8 |
18.1 ±0.3 |
500.0 |
1200 |
70 |
0.47 |
100 |
2910420 |
• |
¤ Upon availability.
* Tolerance on length: ± 1 % (ISO 1307 Standard)
