Primena:
- Specijalno dizajnirano za profesionlano i industrijsko čišćenje pod visokim pritiskom
- Efikasno za mašine, vozila, podove, javne površine, fasade, itd.

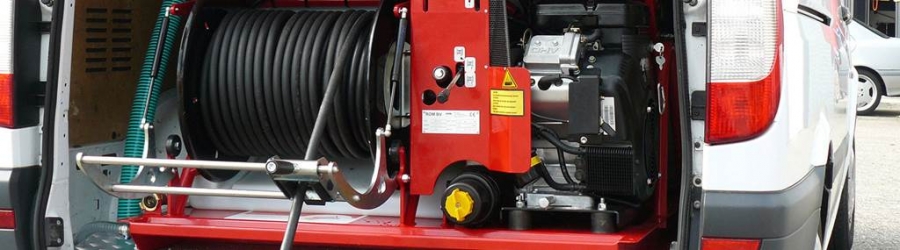

- Pogodno za mobilne mašine za čišćenje, fiksne mašine i sve aplikacije sa vitlom
Prednosti:
- Glatka završna obrada
- Otporno na ulje, deterdžente, habanje i vremenske uslove
- Otporno na visloke temperature
- Lagano, fleksibilno i otporno na prelom
- Dug životni vek
Inner tube
NBR/SBR, black, smooth
Reinforcement
steel, one braid
Cover
SBR/NBR, blue, smooth
Temperature range
-40°C to +150°C.
Couplings/Fittings
Specially designed fittings are available, please contact us for further information in order to get optimum connections.
Complementary information
50% of the volume in each delivery will be random lengths, shortest length of 10m, at least 50% will be in fixed length mentioned in the table.
Technical Specifications
| ID (mm) | Wall thickness (mm) | OD (mm) | Reinf. diameter (mm) | Working pressure (bar) | Bursting pressure (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number | Stock or min. order (m) |
|---|---|---|---|---|---|---|---|---|---|---|
|
6,4 +0.6/-0.2 |
2.65 |
11,7 ±0.7 |
9.8 ±0.3 |
400.0 |
1000 |
50 |
0.16 |
100 |
2913930 |
• |
|
7,9 +0.6/-0.2 |
2.75 |
13,4 ±0.7 |
11.5 ±0.3 |
400.0 |
1000 |
60 |
0.19 |
100 |
2910040 |
• |
|
9,5 +0.6/-0.2 |
3.0 |
15,5 ±0.7 |
13.6 ±0.3 |
400.0 |
1000 |
70 |
0.25 |
100 |
2910000 |
• |
|
12,7 +0.8/-0.4 |
3.0 |
18,7 ±0.8 |
16.7 ±0.3 |
350.0 |
900 |
80 |
0.3 |
100 |
5015696 |
• |
¤ Upon availability.
* Tolerance on length: ± 1 % (ISO 1307 Standard)
