Primena:
- Upotreba za čišćenje kanalizacione mreže pod visokim pritiskom.
- Poželjno kao zamena za hidraulička creva koja su se koristila za ovu namenu na kamionima za održavanje kanalizacione mreže.
Prednosti:
- Veoma otporna na abraziju i vremenske uslove.
- Gladak završni sloj radi sprečavanje oštećanja.

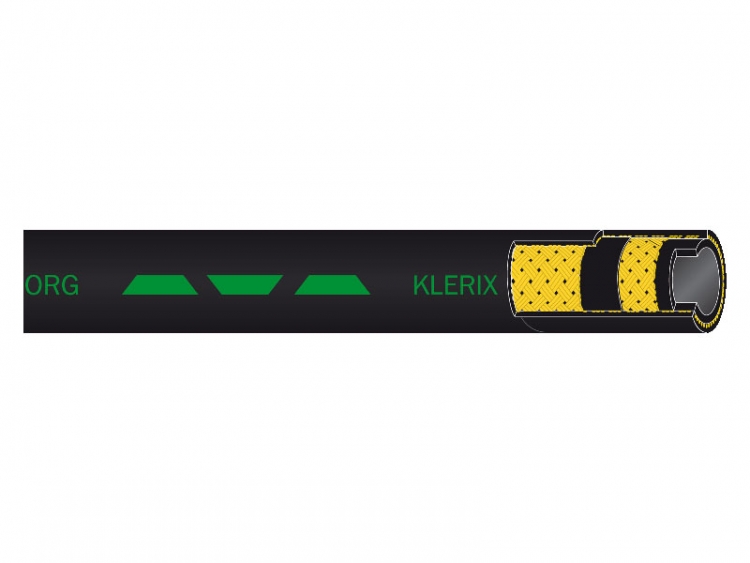

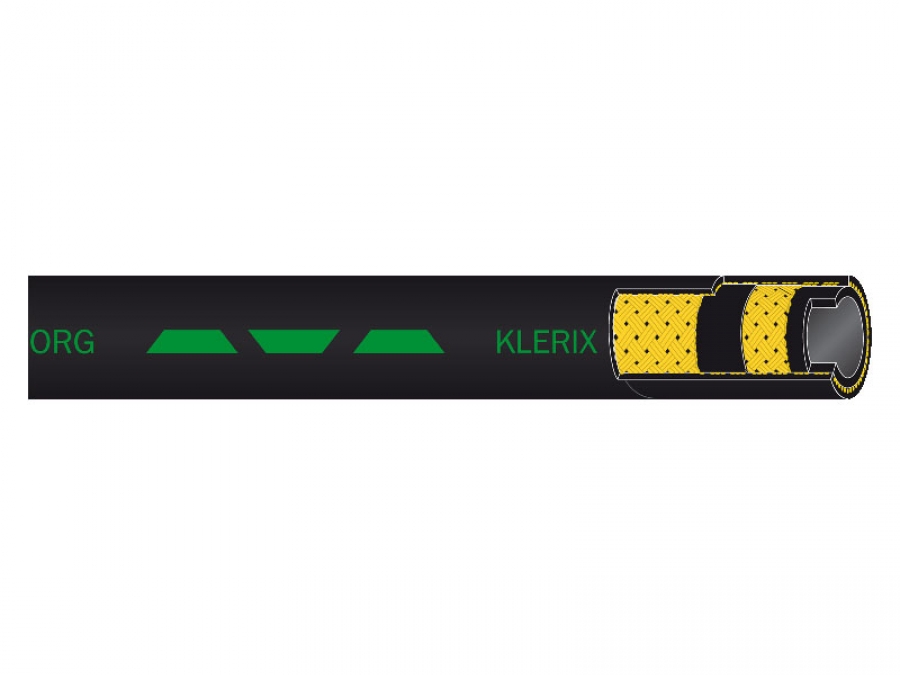

Inner tube
SBR, black, smooth
Reinforcement
steel, braided
Cover
SBR/NR, black, smooth
Temperature range
-30°C to +80°C.
Couplings/Fittings
Hydraulic coupling.
Complementary information
Delivered without couplings.
Technical Specifications
| ID (mm) | Wall thickness (mm) | OD (mm) | Working pressure (bar) | Bursting pressure (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number | Stock or min. order (m) |
|---|---|---|---|---|---|---|---|---|---|
|
13 ±0.8 |
5.0 |
23 ±0.8 |
200.0 |
500 |
70 |
0.45 |
40 |
0071107 |
• |
|
13 ±0.8 |
5.0 |
23 ±0.8 |
200.0 |
500 |
70 |
0.45 |
60 |
0071108 |
• |
|
13 ±0.8 |
5.0 |
23 ±0.8 |
200.0 |
500 |
70 |
0.45 |
80 |
0071109 |
• |
|
13 ±0.8 |
5.0 |
23 ±0.8 |
200.0 |
500 |
70 |
0.45 |
100 |
0071110 |
• |
|
13 ±0.8 |
5.0 |
23 ±0.8 |
200.0 |
500 |
70 |
0.45 |
120 |
0071111 |
• |
|
19 ±0.8 |
6.25 |
31,5 ±0.8 |
200.0 |
500 |
95 |
0.82 |
40 |
5010435 |
840 |
|
19 ±0.8 |
6.25 |
31,5 ±0.8 |
200.0 |
500 |
95 |
0.82 |
60 |
0071113 |
840 |
|
19 ±0.8 |
6.25 |
31,5 ±0.8 |
200.0 |
500 |
95 |
0.82 |
80 |
0071114 |
• |
|
19 ±0.8 |
6.25 |
31,5 ±0.8 |
200.0 |
500 |
95 |
0.82 |
100 |
0071115 |
• |
|
19 ±0.8 |
6.25 |
31,5 ±0.8 |
200.0 |
500 |
95 |
0.82 |
120 |
0071116 |
• |
|
25 ±1.0 |
6.55 |
38,1 ±1.0 |
200.0 |
500 |
110 |
1.14 |
60 |
0071117 |
1200 |
|
25 ±1.0 |
6.55 |
38,1 ±1.0 |
200.0 |
500 |
110 |
1.14 |
80 |
0071118 |
• |
|
25 ±1.0 |
6.55 |
38,1 ±1.0 |
200.0 |
500 |
110 |
1.14 |
100 |
0071119 |
• |
|
25 ±1.0 |
6.55 |
38,1 ±1.0 |
200.0 |
500 |
110 |
1.14 |
120 |
0071120 |
• |
|
32 ±1.2 |
6.95 |
45,9 ±1.2 |
200.0 |
500 |
150 |
1.57 |
60 |
0071121 |
600 |
|
32 ±1.2 |
6.95 |
45,9 ±1.2 |
200.0 |
500 |
150 |
1.57 |
80 |
0071122 |
480 |
|
32 ±1.2 |
6.95 |
45,9 ±1.2 |
200.0 |
500 |
150 |
1.57 |
100 |
0071123 |
600 |
|
32 ±1.2 |
6.95 |
45,9 ±1.2 |
200.0 |
500 |
150 |
1.57 |
120 |
0071124 |
600 |
¤ Upon availability.
* Tolerance on length: ± 1 % (ISO 1307 Standard)
